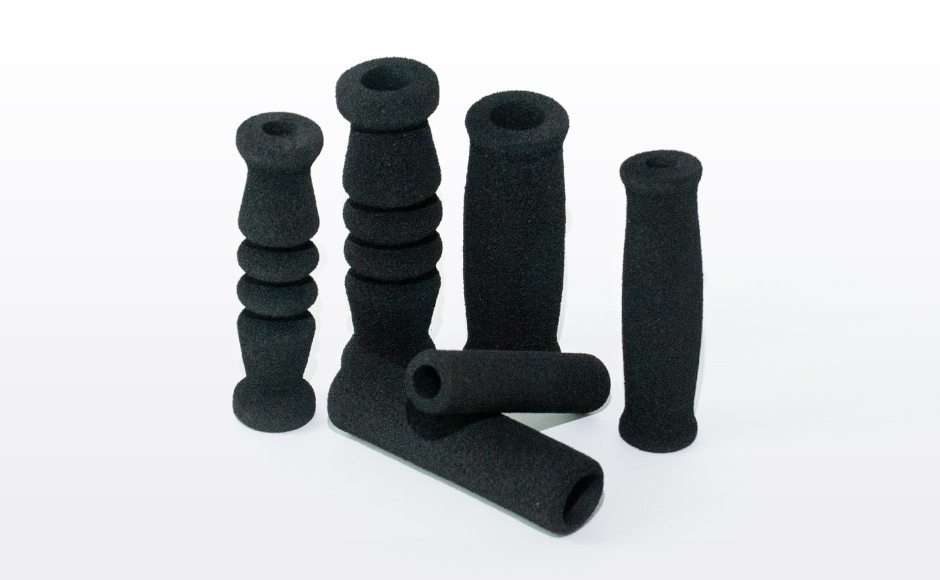

Our Contoured Foam Hand Grips (FHG) line of grips measure about 4-1/2” to 5-1/4” long and feature contoured ergonomic designs.
Inside Diameters & Fit
Both the FHG-22 and FHG-3 are stocked in sizes that fit the most commonly used bars/tubes. For most applications, we recommend using grips with an inside diameter 0.125” smaller than the bar/tube that they will be covering. This downsizing will factor in the tolerances and still provide a tight fit. Custom grips can be designed for a nominal fee in the diameters listed in the chart. FHGs in other inside diameters can be made on a custom basis.
Wall Thickness
FHG’s typically have a wall thickness of about 0.375” at their thickest point which provides for an extremely comfortable, yet ergonomic grip.
Stock Foam Hand Grips
| Grip Style | To Fit Outside Diameter | Inside Dimension “A” | Lengths Up To “B” | Nominal Wall Thickness “C” | Density (per cubic foot) | ||||
|---|---|---|---|---|---|---|---|---|---|
| in | mm | in ±.050 | mm ±1.27 | in ±.125 | mm ±3.18 | in ±.020 | mm ±.51 | ||
| FHG-3 | 0.750 | 19.05 | 0.625 | 15.88 | 5.000 | 127.00 | 0.375 | 9.53 | 7-9 |
| FHG-3 | 0.875 | 22.23 | 0.750 | 19.05 | 5.000 | 127.00 | 0.375 | 9.53 | 7-9 |
| FHG-3 | 1.000 | 25.40 | 0.875 | 22.23 | 5.000 | 127.00 | 0.375 | 9.53 | 7-9 |
| FHG-22 | 0.625 | 9.53 | 0.500 | 12.70 | 4.500 | 114.30 | 0.375 | 9.53 | 7-9 |
| FHG-22 | 0.750 | 19.05 | 0.625 | 15.88 | 4.500 | 114.30 | 0.375 | 9.53 | 7-9 |
| FHG-22 | 0.875 | 22.23 | 0.750 | 19.05 | 4.500 | 114.30 | 0.375 | 9.53 | 7-9 |
| FHG-22 | 1.000 | 25.40 | 0.875 | 22.23 | 4.500 | 114.30 | 0.375 | 9.53 | 7-9 |
Consult your sales representative for non-stock colors, materials or custom designs.
Materials
Contoured FHGs come standard in low density NPVC, but can be made in other densities and in an EPDM material – minimums apply. Note: Any buffed or ground grip will typically lose two to three pounds of density.
Printing, Packaging & More
GripWorks offers a full array of finishing operations to satisfy all of your requirements. The following options are available for all of our foam grips and vinyl grips, including tool grips, handle grips, and just about any grip application possible.
- Imprinting
- Punching
- Slicing
- Washing
- Packaging
